Posts and brace posts for chain link fence

Posts for chain links fence

Type Dimensions of post
(diameter x thickness)
(mm)		 Surface treatment Height of post
(mm)

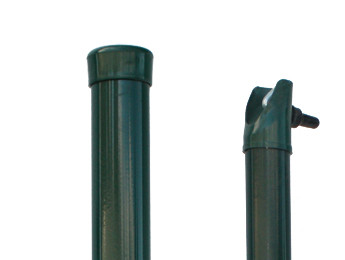

Posts BPL
(Posts PVC coated)		 48 x 1,50 ZN+PVC
(galvanized and PVC coated)

colors RAL6005, RAL7016
  • for color RAL6005:
    1500; 1750; 2000; 2200; 2300; 2500; 2800; 3000 mm
  • for color RAL7016:
    1500; 2000; 2300; 2500 mm
38 x 1,25 ZN+PVC
(galvanized and PVC coated)

color RAL6005
  • for color RAL6005:
    1500; 1750; 2000; 2200; 2300; 2500; 2800; 3000 mm
60 x 2,50 ZN+PVC
(galvanized and PVC coated)

color RAL6005
  • for color RAL6005 on demand:
    4000; 5000 mm

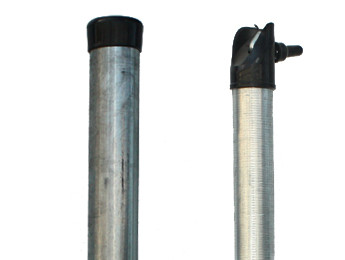

Posts ZN
(Posts galvanized)		 48 x 1,50 ZN
(galvanized)
  • 1500; 1750; 2000; 2300; 2500; 2800; 3000 mm
38 x 1,25
  • posts are delivered with plastic caps
  • posts with welded base plates (for example to mount on the wall) are not in offer – in this case is need to use separate base plate

    Brace posts for posts

    Type Dimensions of post
    (diameter x thickness)
    (mm)    		 Surface treatment Height of brace post
    (mm)
    Brace post BPL
    (Brace posts PVC coated)    		 38 x 1,25 ZN+PVC
    (galvanized and PVC coated)

    colors RAL6005, RAL7016
    • for color RAL6005:
      1500; 1750; 2000; 2300; 2500; 2800; 3000 mm
    • for color RAL7016:
      1500; 2000; 2300; 2500 mm
    Brace post ZN
    (Brace posts galvanized)    		 38 x 1,25 ZN
    (galvanized)
    • 1500; 1750; 2000; 2300; 2500; 2800; 3000 mm
      • brace posts are delivered with complete cap (for fitting on the post). Complete cap includes: plastic cap, hook screw, nut, washer plastic cover of the nut.
        • brace posts with welded base plates (for example to mount on the wall) are not in offer – in this case is need to use separate base plate
